Revolutionizing Hyperpigmentation Solutions: Formulation and Characterization of Kojic Acid Gel

Sumiyya Javaid1, Tayyaba Rana2*, Muhammad Zaman1, Zainab Naeem1, Azeem Ahmed Iqbal3

1Faculty of Pharmaceutical Sciences, University of Central Punjab, Lahore, Pakistan

2Faculty of Pharmacy, Minhaj University Lahore, Pakistan

3College of Pharmacy, Punjab University, Lahore, Pakistan

Original Article Open Access
DOI: https://doi.org/10.32350/cpr.21.01

Abstract

Kojic acid is a skin-lightening agent that blocks the tyrosinase enzyme and inhibits melanin synthesis. While kojic acid has demonstrated effectiveness in hyperpigmentation treatment, the existing formulations often suffer from issues, such as poor skin penetration, instability, and skin irritation. The current study aimed to overcome these limitations by preparing a kojic acid gel formulation utilizing biocompatible polymers. These polymers included sodium alginate and xanthan gum to enhance therapeutic efficacy for hyperpigmentation treatment. Sodium alginate and xanthan gum were used as polymers, while the excipients included propylene glycol, glycerin, peppermint oil, methylparaben, and propylparaben. Design Expert 11 optimized topical gels' viscosity, spreadability, and permeation responses. The optimized gels were determined for organoleptic properties, pH, drug content, spreadability, viscosity, in-vitro drug permeation studies, Fourier Transform Infrared Spectroscopy (FTIR) analysis, anti-oxidant activity, antimicrobial activity, and stability study. Results indicated that the pH of the optimized sodium alginate gel was 6.6 and that of xanthan gum gel was 6.8. The spreadability was 28.5 g.cm/sec and 17 g.cm/sec for sodium alginate and xanthan gum gels, respectively. The viscosity was 5900 mPa.s for sodium alginate gels and 6854 mPa.s for xanthan gum gels. The drug content lied in the range of 90%-110%, which is according to United States Pharmacopeia standards. The permeation study showed an acceptable release profile for both gels. The anti-oxidant assay indicated an optimum anti-oxidant activity, while the antimicrobial activity test showed inhibitory action against bacteria. An accelerated stability study elucidated that the optimized gels had good stability. The results inferred that the prepared gel formulations of kojic acid were stable and reproducible

Keywords : biocompatible polymers, hyperpigmentation, kojic acid, sodium alginate, xanthan gum
*Corresponding author: [email protected]

Published: 15-11-2024

1. Introduction

Facial hyperpigmentation or Melasma, also called as the mask of pregnancy, is a disorder commonly characterized by irregular and light or dark brown or ash brown hypomelanosis on neck and facial areas due to increased melanin levels [1]. Melasma is known to affect women more than men. The incidences of Melasma in men comprise only 10% of the total cases. Additionally, post-inflammatory hyperpigmentation and Melasma are the third most common reasons for dermatologist visits [2]. The human skin epidermis comprises keratinocytes, melanocytes, and Langerhans cells. The main determinants of human skin color are two types of melanin pigments: pheomelanin and eumelanin. Melanin is produced by the melanocytes in the epidermis [3]. Facial hyperpigmentation may not only cause cosmetic disfiguration, however, also has an emotional impact on patients. Although, many options exist for the treatment of this skin disorder, all these agents have varying efficacy levels. Overall, most therapeutic agents aim to eliminate the factors provoking hyperpigmentation. Kojic acid is one of the topical agents that can be used to reduce facial pigmentation [4].

Kojic acid is an effective cosmeceutical product for hyperpigmentation. This is because it inhibits the catecholase activity of the enzyme tyrosinase, a rate-limiting step in melanin production. The inhibition of tyrosinase, an essential enzyme in the skin pigment melanin biosynthesis, reduces melanin. Thus, hyperpigmentation is eliminated. Additionally, it is an inhibitor of bacterial, fungal or viral multiplication. It acts as a skin lightener due its well-known anti-oxidant activity [5]. Kojic acid has various advantages which makes it quite an effective compound to be used in the cosmetic industry [6]. For instance, it reduces sun damage by lightening visible pigmentation, protects from UV radiations, and acts as an anti-ageing action (reducing age spots) owing to its anti-oxidant properties. Despite the wide usage of kojic acid as a skin-lightening agent and other anti-hyperpigmentation remedies, the efficacy of treatment is still questionable due to various factors. The primary reason is the poor penetration of many topical formulations into the skin which limits their ability to target deeper layers of skin where melanin synthesis occurs. Moreover, traditional preparations tend to be greasy, sticky, or are otherwise uncomfortable to wear. Thus, they are not always used correctly and suboptimal results are likely to occur. These treatments often provide slow and uneven improvements, requiring long periods of application before seeing any visible effects. Additionally, kojic acid itself is chemically unstable, especially when exposed to light, air, or heat, which would slowly affect the efficacy. Many treatments cause skin irritation or sensitization, particularly on sensitive skin, which becomes an issue with long-term use. Keeping in view these gaps, this study focused on the development of a gel formulation of kojic acid using biocompatible polymers, such as sodium alginate and xanthan gum. This allowed better penetration through the skin, stability, and lesser irritation. Thus, better, consistent, and faster results were obtained than a conventional treatment.

Biocompatible polymers, such as sodium alginate and xanthan gum have been of considerable interest in cosmeceutical formulations due to their unique advantages. Sodium alginate, an alga extracted from brown seaweed, is known for its excellent biocompatibility and skin hydration properties. It forms stable and smooth gels when combined with divalent cations, which help to encapsulate active ingredients, such as kojic acid. This ensures their controlled release and improved skin penetration. Furthermore, sodium alginate is a water-retentive ingredient that maintains skin moisture, thus making this formulation even more effective [7].

Xanthan gum, a natural polysaccharide, is an efficient thickening and stabilizing agent that enhances viscosity, spreadability, and overall texture of the gel. Furthermore, it also conditions skin for smoother application [8]. The synergistic interaction between sodium alginate and xanthan gum generates stable and homogeneous gel solutions. This improves the therapeutic value of kojic acid through overcoming some limitations encountered by the existing treatments, such as instability, irritation, and absorption inconsistencies.

2. MATERIALS AND METHODS

2.1. Materials

Kojic acid (Hunan Nutramax, China), sodium alginate (Kimica, Tokyo), xanthan gum (AIE Pharma, Canada), propylene glycol (DaeJung, Korea), peppermint oil (UNI-CHEM, Pakistan), glycerin (UNI-CHEM, Pakistan), methyl paraben and propyl paraben (Sigma Aldrich Chemie GmbH, U.S.A.), ethanol (Merck, Germany), and distilled water (Research Lab, UCP). All analytical grade chemicals were used for the current study.

2.2. Methods

2.2.1. Linearity Curve of Kojic Acid and FTIR Analysis.The linearity curve of kojic acid was obtained by making a stock solution (1mg/ml) of the drug. Serial dilutions showed a concentration range of 0.1-0.9 mg/ml. A UV spectrophotometer determined the absorbance of each dilution at a wavelength of 220 nm, with distilled water as the blank or baseline control to ensure accurate readings [9]. FTIR was employed to determine the compatibility of drugs with polymer and other excipients [10]. The baseline or control condition was the spectrum of the pure polymer and excipients, which served to identify any possible shifts or interactions between the kojic acid and the excipients.

2.2.2. Formulation Design. The formulations of topical gels for hyperpigmentation were designed and optimized via Design Expert ver. 11 (Table 1). The concentration of sodium alginate and xanthan gum and active ingredient (kojic acid) was constant. The variables selected included the solvent (Propylene Glycol), plasticizer (Glycerin), and an odorant (Peppermint Oil). Propylene glycol was chosen as factor 1 (X1), glycerin as factor 2 (X2), and peppermint oil as factor 3 (X3).

Table 1.Formulation Design by Design Expert ver. 11
S. NO. X1(ml) X2(ml) X3(ml)
1 7 2.25 0.1
2 5.25 1.5 0.3
3 3.5 2.25 0.3
4 3.5 2.25 0.1
5 5.25 2.25 0.2
6 7 2.25 0.2
7 7 3 0.2
8 5.25 3 0.3
9 5.25 2.25 0.2
10 3.5 1.5 0.2
11 5.25 1.5 0.1
12 3.5 3 0.2
3 5.25 3 0.1
14 7 1.5 0.2

2.2.3 Preparation of Kojic Acid Gel. The gelling agents, that is, sodium alginate and xanthan gum were soaked in 100 ml distilled water separately and allowed to stand for about three hours until they swelled. A uniform gel was formed by stirring the above-formed mixture using a magnetic stirrer. Methylparaben and propylparaben were dissolved in 20 ml distilled water by heating at 70ºC using a water bath and added to the gels as preservatives. Kojic acid was dissolved in propylene glycol using a homogenizer at 9000 rpm and then incorporated into the gels. This mixture required glycerin and peppermint oil added with continuous stirring.

2.2.4. Numerical Optimization. The responses studied for the gels included viscosity, spreadability and permeability. These responses were added to Design Expert and analyzed by Analysis of Variance (ANOVA) to optimize the data. This resulted in optimized formulations with a desirability of 1.000, and the following composition as shown in Table 2.

Table 2. Composition of Optimized Gel Formulation
Ingredients Concentration
Sodium Alginate Gel Xanthan Gum Gel
Sodium Alginate 8g -
Xanthan Gum - 1.5g
Kojic Acid 2g 2g
Propylene Glycol 6.910ml 3.550ml
Peppermint Oil 0.297ml 0.226ml
Glycerin 2.726ml 2.990ml
Methyl Paraben 0.1g 0.1g
Propyl Paraben 0.01g 0.01g
Distilled Water q.s 100ml q.s 100ml

2.2.5. Organoleptic Evaluation. The formulations of topical gels, including blank preparations (without kojic acid), were visually examined for their physical appearance, odor, consistency, and homogeneity [11].

2.2.6. Rheological Studies. A Brookfield viscometer with spindle no.4 was used to determine the viscosity of the prepared formulations. The speed of the viscometer was set at 12 rpm [12].

2.2.7. pH Determination. A digital pH meter was used to determine the pH of all kojic acid gel formulations [13].

2.2.8. Spreadability. The fixed slide method determined the spreadability of all the prepared formulations [14]. The following formula was used to determine spreadability:

S = M L   x T

2.2.9. Drug Content. Drug content for kojic acid was measured by a spectrophotometer at a wavelength of 220 nm (9) using the formula:

% Drug Content = Abs (Sample) Abs(Standard)   x 100

2.2.10. In-vitro Drug Permeation Studies. The in-vitro drug permeation was done using a Franz diffusion (FD) cell. This test was conducted by putting 1 g of gel sample on rabbit skin supported amidst donor and receptor compartments of Franz cell at 37°C. Rabbit skin was used due to its similarity to human skin, particularly in the epidermal thickness and permeability, which makes it a suitable model for the evaluation of skin penetration. A pH 7.4 phosphate buffer was used as media. Five (5) ml of the test sample was drawn at different time intervals for up to 8 hours. Fresh media was used to make up the volume [15] to determine the % drug permeation.

2.2.11. Chemical Compatibility of Gel Formulations. The gel samples were subjected to FTIR analysis in order to determine the compatibility of all ingredients used in their formulation.

2.2.12. Antimicrobial Activity. The antimicrobial activity of gel samples was assessed by the cup plate method [16] using a bacterial culture of Micrococcus luteus. The area of the zone of inhibition was measured.

2.2.13. Anti-oxidant Activity. The total anti-oxidant capacity of the gels was estimated using a Diphenyl Picryl Hydrazyl (DPPH) radical scavenging assay. A total of 2.4 mg of DPPH was dissolved in 100 ml of methanol. Test solution (5 μl) was added to 3.995 ml of prepared solution of methanolic DPPH. This mixture was kept at room temperature for 30 mins in the dark. The absorbance of this solution was measured spectrophotometrically at a 515nm wavelength. The absorbance of a blank solution without an anti-oxidant was also noted. DPPH radical scavenging capability was calculated using the following equation:

% DPPH Scavenged = AB-AA A   x 100

Triplicate measurements were performed for each sample to ensure consistent results within a single experiment. A positive control, that is, ascorbic acid was used to validate the results which provided a comparative measure of antioxidant activity.

2.2.14. Stability Studies. The optimized formulations were subjected to stability studies according to the ICH guidelines. This study was conducted by keeping the optimized gel in the stability chamber for six months. The formulations were stored at 40ºC/75% humidity in plastic containers. The formulations were examined initially and then after the six-month intervals for their appearance, texture, color, odor, stage partition, homogeneity, pH, viscosity, and drug content.

3. RESULTS AND DISCUSSION

3.1. Organoleptic Evaluation

The gels made using xanthan gum had a whitish color, while the gels prepared using sodium alginate showed a slightly yellowish color, which complies with the other studies [17, 18]. The gels had a minty smell due to the incorporation of peppermint oil [19]. All the gels had a thick consistency due to glycerin [20].

3.2. pH

The pH of xanthan gum gels ranged from 6.38-7.36 and sodium alginate gels showed a pH range of 6.34-7.21 (Figure 1). Ganz, 2006 suggested that kojic acid remains stable at a pH ranging from 4-9. Thus, it enhances the possibilities to formulate stable cosmeceutical agents [21]. The current study established that the gels had a pH ranging from 6-7, comparable to other studies [22, 23]. Kojic acid, like many active ingredients, is sensitive to pH, with its stability being compromised in more acidic or alkaline environments. At lower pH values, kojic acid may degrade which reduces its efficacy to treat hyperpigmentation [24]. On the other hand, extreme alkaline conditions may alter the gel's texture which compromises its performance and user experience. Furthermore, the pH of normal human skin is around 4.5-6 [25] which indicates that the prepared gels could be effective for dermatological applications.

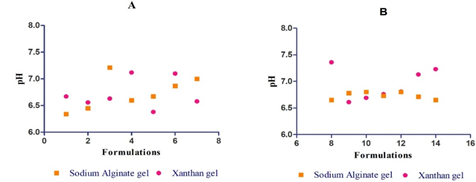

Figure 1.pH of Xanthan and Sodium Alginate Gels (A) Formulation 1-7 (B) Formulation 8-14

3.3. Spreadability

The spreadability of gels with xanthan polymer was 14.06-22.5 g.cm/sec, while that of the gels comprising sodium alginate polymer had a spreadability of 20.45-37.5 g.cm/sec (Figure 2). Studies indicated that sodium alginate had good adhesive properties due to its electrostatic and hydrogel bonding [18]. It was also observed that the gels containing higher glycerin and propylene glycol had lower spreadability values than others. This could be due to both ingredients' thickening properties [26, 27]. As the gel viscosity enhanced, the spreadability decreased in turn. Furthermore, higher spreadability gels often deliver easier and more uniform cover-ups, offering higher cosmetic appeal. The optimized gels of both xanthan gum and sodium alginate had good spreadability.

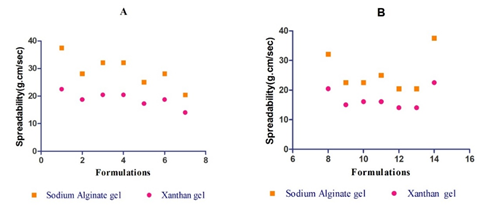

Figure 2.Spreadability of all 14 Formulations of Xanthan and Sodium Alginate Gels (A) Formulation 1-7 (B) Formulation 8-14

3.4. Viscosity

The xanthan gum gel formulations showed a viscosity in the scope of 5432-7453 mPa.s, while sodium alginate gels showed a viscosity range of 4325-6754 mPa.s (Fig 3.3). A higher concentration of polymers resulted in a greater viscosity. The polymeric entanglements enhance gels' viscosity, thereby improving the resistance towards flow and deformation [28]. The viscosity of gels was also influenced by glycerin, which increases hydrogen bonding [29]. Propylene glycol may also enhance the viscosity of gel by expanding the cross-linking between the network [30]. The formulated gels, with balanced viscosity and high spreadability, offered a more pleasant sensory experience, likely encouraging more consistent use.

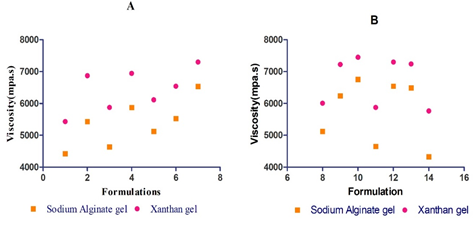

Figure 3.Viscosity of Xanthan and Sodium Alginate Gels (A) Formulation 1-7 (B) Formulation 8-14

3.5. In-vitro Permeation of Kojic Acid

Figure 4 and Figure 5 represent the results of in-vitro kojic acid permeation. Approximately 90% of the drug permeated from the gels by 8 hours from both formulations. The release profiles of kojic acid topical gels across the dialysis membrane indicated that drug release increased over time. Additionally, it was observed that the gels containing peppermint oil had a higher permeation than other formulations. This increase in release could be attributed to peppermint oil's ability to reduce the stratum corneum's barrier resistance [31]. Caliskan et al. also studied peppermint oil as a penetration enhancer and reported that this essential oil increased the permeation of various therapeutic agents from the skin without causing toxicity [32].It was also observed that the release rate from sodium alginate gels was lower than that from xanthan gum. This could be due to the high viscosity of sodium alginate gels. Studies indicated that viscosity is inversely proportional to the drug release from topical formulations and its permeation through the diffusion barriers [33].

The release profile is consistent with findings in the existing literature, where gel-based formulations have been shown to enhance the controlled release of active ingredients as compared to other topical formulations, such as creams and lotions.For instance, a study conducted by Yan et al. revealed that gel formulations of kojic acid with biopolymer bases (such as xanthan gum) exhibited more efficient and prolonged release than conventional formulations and thus, improved the therapeutic efficacy [34]. The permeation rate observed in this study was comparable to those reported in Saha et al. [35], who used similar excipients and noted that the use of biopolymers significantly increased the skin penetration of kojic acid. This comparison highlights the importance of utilizing gel formulations to increase the efficacy of active ingredients, such as kojic acid, which improves both skin penetration and stability over time.

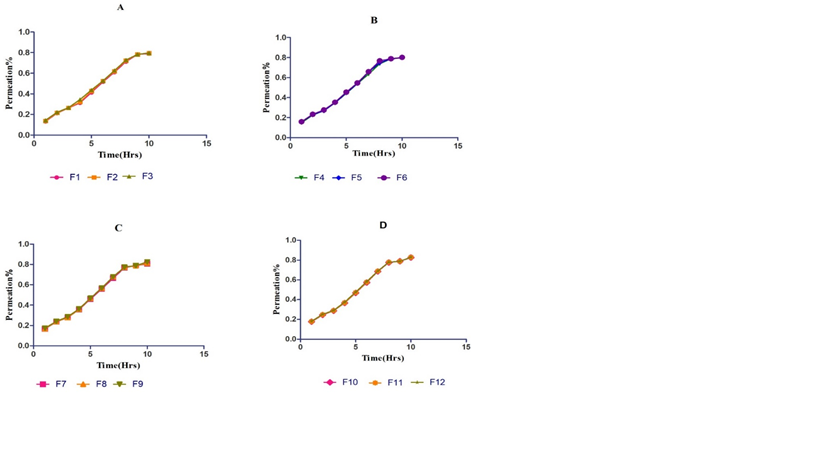

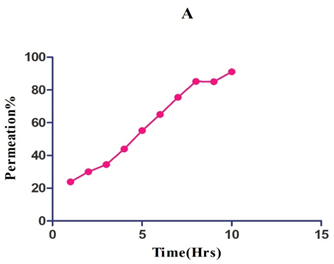

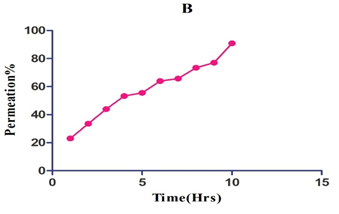

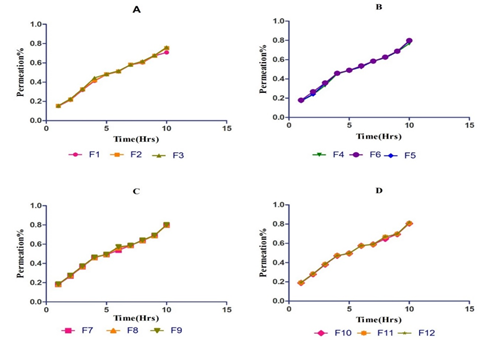

Figure 4.In-vitro Permeation of Kojic Acid in Xanthan Gum Gel (A) Formulation 1-3 (B) Formulation 4-6 (C) Formulation 7-9 (D) Formulation 10-12 (E) Formulation 13-14



Figure 5.In-vitro Permeation of Kojic Acid in Sodium Alginate Gel (A) Formulation 1-3 (B) Formulation 4-6 (C) Formulation 7-9 (D) Formulation 10-12 (E) Formulation 13-14

3.6. Chemical Compatibility of Formulation

Figure 6 represents that the IR spectrum of kojic acid showed peaks at the following locations: at 1775 cm−1 showing strong C=O stretching of conjugated anhydride; at 1690 cm−1 due to strong C=O stretching in the primary amide group; at 1465 cm−1 due to medium C–H bending; and at 1205 cm−1 to 1124 cm−1 indicating C–O stretching.

Figure 7 (A) shows different peaks obtained by IR analysis of the topical gel containing polymer sodium alginate. Peaks were seen at 3300 and 3400 cm−1 due to medium N–H stretching, substantial N–H stretching at 2800 to 3000 cm−1, and between 1650 and 2000 cm−1 due to weak C–H bending. While Figure 7 (B) illustrates the spectra obtained from the analysis of gel formulation made from polymer sodium alginate.

Figure 7 (C) depicts different peaks obtained by IR analysis of the topical gel containing xanthan gum polymer. Peaks were seen at 3500 and 3700 cm−1 showing O–H stretching, a strong N–H stretching leading to peaks at 2800–3000 cm−1. While Figure 7 (D) showed the analysis of gel formulation made of polymer xanthan gum. Both gels showed the peaks of kojic acid, as did the respective polymers. No incompatibility was seen in the FTIR analysis of either gel.

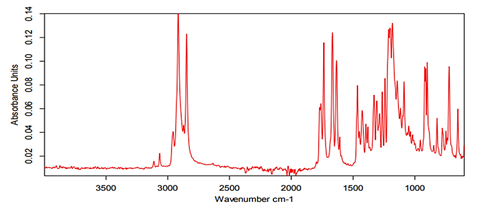

Figure 6.FTIR of Kojic Acid

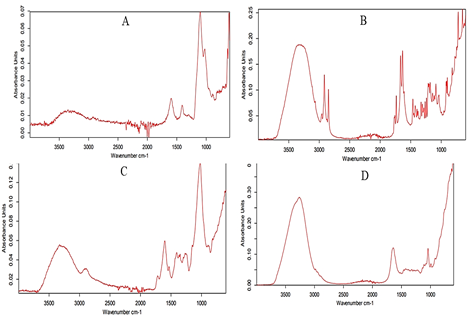

Figure 7.FTIR Analysis A) Sodium Alginate B) Topical Gels with Sodium Alginate C) Xanthan Gum D) Topical Gels with Xanthan Gum

3.7. Characterization of Optimized Gels

The optimized formulations were evaluated for multiple parameters. The results were as follows:

Table 3. Results Obtained from Characterization Tests on the Optimized Formulations
Parameters Sodium Alginate Gel Xanthan Gum Gel
Color Slightly yellow Whitish
Odor Minty Minty
pH 6.6 6.8
Spreadability 28.5 g.cm/sec 17 g.cm/sec
Viscosity 5900 mPa.s 6854 mPa.s
Drug Content 92.7%. 90.5%

3.8. In-vitro Drug Permeation Study

Figures 8 and 9 show the permeation of active ingredients: kojic acid from sodium alginate gels and xanthan gum. The permeation of kojic acid from xanthan gum at 8-hour intervals was 90%, while that of sodium alginate gel was 91%. Kojic acid was released and permeated through the epithelial membrane greatly from both formulations. Studies showed a direct relationship between the drug release rate and the efficacy of topical product [36]. Since the active agent has been sufficiently released from the optimized topical gels, kojic acid should be readily available to act on the skin, thus resulting in an increased permeation and therapeutic effect.


Figure 8.In-vitro Kojic acid Permeation of Optimized Sodium Alginate Gel


Figure 9. In-vitro Kojic Acid Permeation of Optimized Xanthan Gum Gel

3.9. Anti-oxidant Activity

The correlation of total antioxidant activity of ascorbic acid and optimized gels showed that they pursued a comparable direction. The gels had an ideal TAA, concurring the outcomes of this test as shown in Figure 10, 11, and 12. In the current study, kojic acid was used as a skin-lightening agent. Kojic acid lightens the skin through its anti-oxidant activity. Ammar et al. studied its ability to scavenge free radicals by DPPH assay and inferred that kojic acid had intensive anti-oxidant activity [37].

The outcomes could be justified by the results reported by Saraei et al., who studied the anti-oxidant potential of kojic acid and received positive results [38]. Another study conducted by Lobato and his coworkers also suggested that kojic acid and its derivatives had a significant ability to scavenge free radicals [39].

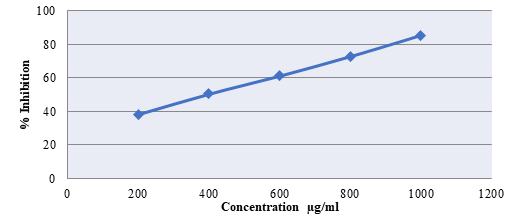

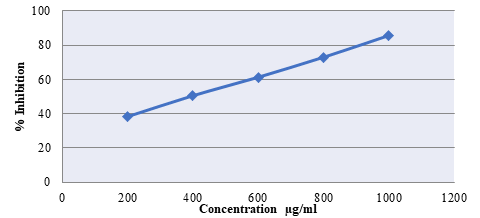

Figure 10.Total Anti-oxidant Activity of Ascorbic Acid (Standard)


Figure 11.Total Anti-oxidant Activity of Xanthan Gum Gel


Figure 12.Total Anti-oxidant Activity of Ascorbic Acid (Standard)Total Anti-oxidant Activity of Sodium Alginate Gel

3.10. Antimicrobial Activity

The zones of inhibition acquired by this test are noted in Table 4. The antimicrobial activity of the gel was tested containing kojic acid. Results showed that its inhibitory impact was equivalent to that of marketed kojic acid (kojic acid whitening cream). Likewise, the inhibitory effects of gels containing kojic acid as an active ingredient were higher than the marketed formulation of kojic acid (Fig 3.13). Literature review showed that kojic acid and its derivatives have a chelating effect, having a catechol-like function that contributes to its antibacterial action [40]. Yu Wu and his coworkers determined the antimicrobial potential of kojic acid and reported that it damaged the integrity of bacterial cell's cell membrane, leading to its inactivation [41].

The results indicated that the prepared gels had an antimicrobial action comparable to the standard kojic acid formulation.


Figure 13.Antimicrobial Study of Gels with Kojic Acid Note. Std = standard, X =Xanthan gum, S = Sodium alginate

Table 4. Antimicrobial Action of Kojic Acid Formulations
Sample Zone of Inhibition in cm
Standard Formulation
(Kojic Acid Whitening Cream)		 2.2
Sodium Alginate 2.7
Xanthan Gum 2.8.

3.11. Stability Study

Table 5 shows the physicochemical assessment for both topical formulations. It has been shown that sodium alginate disrupted the bacterial cellular surface, leading towards the leakage of intracellular components. Sodium alginate chelation property could modulate the production of toxins and inhibit the microbial growth. Its bacteriostatic activity was proven against various bacterial species including Proteus, Pseudomonas, Escherichia, and Acinetobacter [42]. So, it could be inferred that sodium alginate gels remained stable owing to the antimicrobial properties of the polymer itself.

Adding paraben preservatives in the xanthan gum gel leads towards its good stability. Feizabadi and his coworkers reported that parabens inhibited microbial growth and increased the product's shelf life [43].

Table 5. Results of Stability Study after 6 Months
Parameters Xanthan Gum Gel Sodium Alginate Gel
Color White Slightly yellow
Odor Minty Minty
pH 6.8 6.7
Spreadability(g.cm/sec) 16.8 28
Viscosity(mPa.s) 6850 5954
Drug Content(%) 89.4 91.3

3.12. Response Surface Methodology

Responses, such as the penetration of active ingredients, gel viscosity, and gel spreadability were analyzed using response surface methodology. Design Expert was utilized to create contour and 3D graphs depicting various variables' influence including oleic acid, eucalyptus oil, and glycerin.

3.12.1. In-Vitro Permeation of Kojic Acid

Figures 14 and 15 show the graphs representing the effects of variables on kojic acid permeation from sodium alginate gels and xanthan gum gels, respectively. Tables 6 and 7 show the values of analysis of variance of kojic acid permeation from sodium alginate gels and xanthan gum gels, respectively. These graphs by Design Expert showed that the permeation of kojic acid was positive for both gels. The overall response was constructive. All combinations were positive for the permeation of kojic acid from sodium alginate gels. A similar case was seen in the xanthan gum gels, where all three variables enhanced the permeation of the active ingredient.

Studies showed that peppermint oil is a permeation enhancer when incorporated in gels [44]. Other factors, glycerin and propylene glycol, also significantly increased the permeation. Propylene glycol increased the permeation; however, the effect was low as compared to the other two factors.

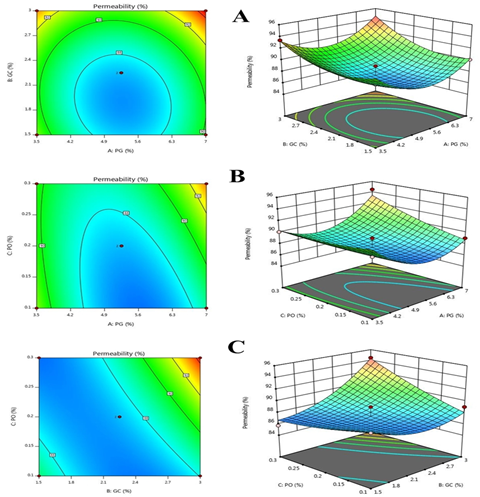

Figure 14.Effect of Variables on Kojic Acid Permeation from Sodium Alginate Gel. A) GC and PG B) PO and PG C) PO and GC

Table 6. Analysis of Variance of Kojic Acid Permeation from Sodium Alginate Gels
Term Degree of Freedom F Value p Value Significance
Model Name 9 3.41 0.1247 No
X1 1 4.06 0.1143 No
X2 1 5.57 0.0777 No
X3 1 0.2377 0.6514 No
X1X2 1 5.26 0.0836 No
X1X3 1 4.94 0.0904 No
X2X3 1 4.14 0.1116 No
X12 1 0.0076 0.9349 No
X22 1 1.28 0.3206 No
X32 1 4.01 0.1159 No

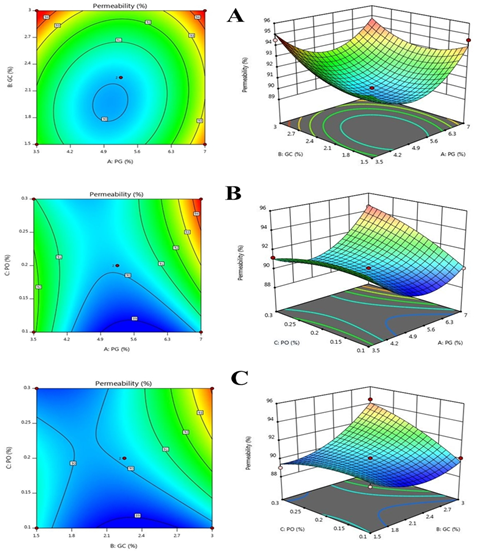

Figure 15.Effect of Variables on Kojic Acid Permeation from Xanthan Gum Gel. A) GC and PG B) PO and PG C) PO and GC

Table 7. Analysis of Variance of Kojic Acid Permeation from Xanthan Gum Gels
Term Degree of Freedom F Value p Value Significance
Model Name 9 17.01 0.0076 Yes
X1 1 3.62 0.1299 No
X2 1 19.68 0.0114 Yes
X3 1 14.58 0.0188 Yes
X1X2 1 3.23 0.1468 No
X1X3 1 20.06 0.0110 Yes
X2X3 1 20.04 0.0110 Yes
X12 1 52.12 0.0020 Yes
X22 1 1611 0.0159 Yes
X32 1 2.56 0.1852 No

3.12.2. Viscosity of Gels

Figure 16 and Figure 17 illustrate the graphs representing the effects of variables on the viscosity of sodium alginate and xanthan gum gels, respectively. Tables 8 and 9 show the values of analysis of variance of viscosity of gels, respectively. The polynomial equation and graphs indicated that glycerin increased gels' viscosity. Glycerin is a thickening agent which increases the viscosity of gels. It was observed that propylene glycol and peppermint oil lowered the viscosity of prepared gels.

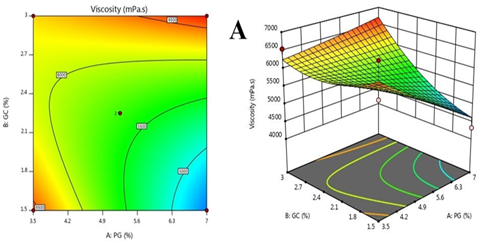

Figure 16.Effect of Factors on Viscosity of Sodium Alginate Gels. A) GC and PG B) PO and PG C) PO and GC

Table 8.Variance of Viscosity of Sodium Alginate Gels
Term Degree of Freedom F Value p Value Significance
Model Name 9 3.41 0.1247 No
X1 1 4.06 0.1143 No
X2 1 5.57 0.0777 No
X3 1 0.2377 0.6514 No
X1X2 1 5.26 0.0836 No
X1X3 1 4.94 0.0904 No
X2X3 1 4.14 0.1116 No
X12 1 0.0076 0.9349 No
X22 1 1.28 0.3206 No
X32 1 4.01 0.1159 No

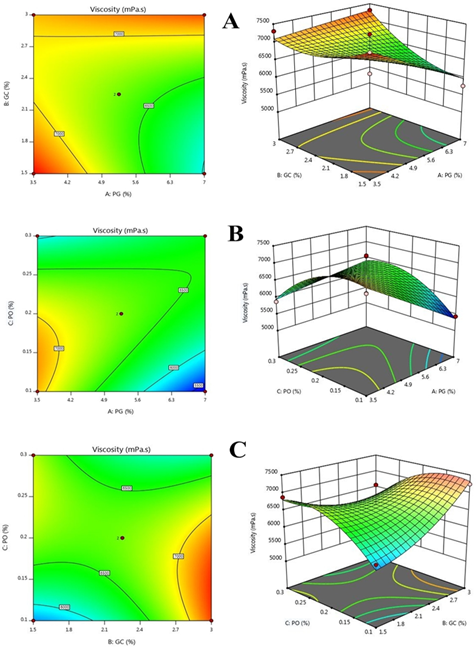

Figure 17.Effect of Factors on Viscosity of Xanthan Gum Gels. A) GC and PG B) PO and PG C) PO and GC

Table 9.Analysis of Variance of Viscosity of Xanthan Gum Gels
Term Degree of Freedom F Value p Value Significance
Model Name 9 3.06 0.1470 No
X1 1 3.95 0.1177 No
X2 1 2.20 0.2120 No
X3 1 0.0234 0.8858 No
X1X2 1 3.51 0.1342 No
X1X3 1 5.85 0.0729 No
X2X3 1 6.13 0.0685 No
X12 1 0.0009 0.9777 No
X22 1 1.36 0.3083 No
X32 1 3.38 0.1398 No

3.12.3. Spreadability of Gels

Figure 18 and Figure 19 illustrate the graphs showing the effects of three variables on the spreadability of both gels. Tables 3.8 and 3.9 show the analysis of variance for spreadability of sodium alginate and xanthan gum gels, respectively. The response in general was constructive. Propylene glycol and peppermint oil both increased the spreadability.

In comparison, glycerin lowered the spreadability. As spreadability and viscosity have an inverse relation, the factors decreasing the viscosity were responsible for the increase in spreadability.

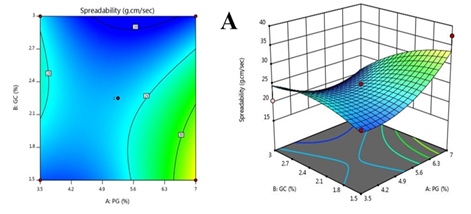

Figure 16.Effect of Factors on Spreadability of Sodium Alginate Gels. A) GC and PG B) PO and PG C) PO and GC

Table 10.Variance of Spreadability of Sodium Alginate Gels
Term Degree of Freedom F Value p Value Significance
Model Name 9 1.04 0.5261 No
X1 1 0.9364 0.3880 No
X2 1 1.35 0.3097 No
X3 1 0.1037 0.7635 No
X1X2 1 1.58 0.2775 No
X1X3 1 0.6161 0.4764 No
X2X3 1 0.5142 0.5130 No
X12 1 1.27 0.3229 No
X22 1 0.4690 0.5311 No
X32 1 2.21 0.2112 No

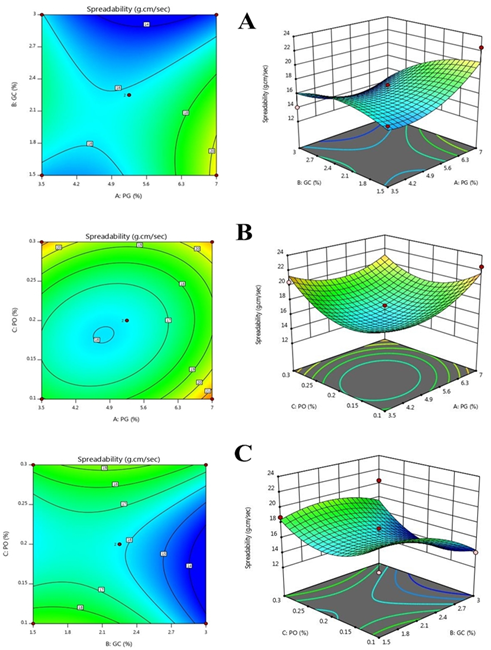

Figure 19. Effect of Factors on Spreadability of Xanthan Gum Gels. A) GC and PG B) PO and PG C) PO and GC

Table 11.Variance of Spreadability of Xanthan Gum Gels
Term Degree of Freedom F Value p Value Significance
Model Name 9 0.8997 0.5914 No
X1 1 0.5652 0.4940 No
X2 1 1.42 0.2987 No
X3 1 0.3480 0.5870 No
X1X2 1 1.02 0.3703 No
X1X3 1 0.3458 0.5881 No
X2X3 1 0.3385 0.5919 No
X12 1 1.09 0.3547 No
X22 1 0.5663 0.4936 No
X32 1 2.00 0.2297 No

3.13. Mathematical Modeling

A quadratic model was employed for mathematical modeling of variables and response calculation.

Y = X0 + X1 + X2 + X3 + X1X2 + X1X3 + X2X3 + X12 + X22 + X32    (4)

X1 indicates Propylene glycol (Factor 1), X2 indicates Glycerin (Factor 2), and X3 indicates Peppermint oil (Factor 3).

Permeation of Kojic Acid from Sodium Alginate Gels = + 87.36 + 0.1394 + 1.65 + 0.9612 + 0.55 + 1.37 + 2.20 + 3.16 + 1.79 + 0.4137    (5)

Viscosity of Sodium Alginate Gels = + 5679 - 375.375 + 439.75 - 90.87 + 604.5 + 585.75 - 536.5

Spreadability of Sodium Alginate Gels = + 23.75 + 2.04 - 2.45 + 0.68 - 3.75 - 2.34 + 2.14 + 3.76 - 2.29 + 4.96

Permeation of Kojic Acid from Xanthan Gum Gel = + 90.1+ 0.4127 + 0.9625 + 0.8285 - 0.5512 + 1.37 + 1.37 + 2.48 + 1.38 - 0.5484   (6)

Viscosity of Xanthan Gum Gels = + 6669.5 - 316.75 + 236.37 - 24.38 + 422.25 + 544.75 – 558 - 7.5 + 293.75 - 463.25   (8)

Spreadability of Xanthan Gum Gels = + 16.15 + 0.8475 - 1.35 + 0.665 - 1.61 - 0.9375 + 0.9275 + 1.86 - 1.34 + 2.52   (10)

From Equation (4), it can be concluded that gel viscosity was elevated by glycerin. Glycerin is a thickening agent that increases the viscosity of gels. The positive value of X0 indicated that the overall response was influential. It was observed that propylene glycol and peppermint oil decreased the viscosity of the prepared gels.

The effect of all three variables on gel spreadability was found to be constructive. Propylene glycol and peppermint oil increased spreadability. In contrast, glycerin reduced the spreadability. The mathematical models showed that the permeation of kojic acid was positive for both types of gels. All combinations were positive for the permeation of kojic acid from sodium alginate gels. A similar trend was observed in the xanthan gum gels, where all three factors improved the permeation of the active ingredient.

4. CONCLUSION

In the current study, kojic acid topical gels were successfully prepared and characterized for hyperpigmentation. The evaluation tests performed on the prepared gels showed good physicochemical characteristics. Furthermore, the current study indicated that kojic acid gels have high anti-oxidant and antimicrobial activities. The percentage drug content was between 90-110% that complied with the USP limits. The characterization tests including the organoleptic evaluation, viscosity, spreadability, pH, in-vitro permeation study, accelerated stability study, and skin irritation test, proved that the formulated gels were stable.

The current study advanced the field of dermatology since it provided a better topical formulation for the treatment of hyperpigmentation. The utilization of biopolymers, such as sodium alginate and xanthan gum, also enhances the stability and delivery of kojic acid. While the favorable sensory properties of the formulation help increase patient compliance. The gel-based delivery system is a promising approach for the treatment of hyperpigmentation, especially with its prolonged efficacy and fewer side effects. This allows better patient adherence than that of conventional formulation. Future studies would look into the long-term efficacy and safety of such gels in clinical settings, further cementing their role in dermatological practice.

CONFLICT OF INTEREST

TThe authors of the manuscript have no financial or non-financial conflict of interest in the subject matter or materials discussed in this manuscript.

DATA AVAILABILITY STATEMENT

Data will be provided by corresponding author on reasonable request.

FUNDING DETAILS

No funding has been received for this research.

REFERENCES

  1. Godinho GV, Paz ALLM, de Araújo Gomes EPA, Garcia CL, Volpato LER. Extensive hard palate hyperpigmentation associated with chloroquine use. Br J Clin Pharmacol. 2020;86(11):2325–2327. https://doi.org/10.1111/bcp.14313
  2. Arora P, Meena N, Sharma PK, Raihan M. Impact of melasma on quality of life in Indian patients. Pigment Int. 2017;4(2):92–97. https://doi.org/10.4103/2349-5847.219683
  3. Nasti TH, Timares L. MC1R, eumelanin and pheomelanin: Their role in determining the susceptibility to skin cancer. Photochem Photobiol. 2015;91(1):188–200. https://doi.org/10.1111/php.12335
  4. García-González CA, Sosnik A, Kalmár J, et al. Aerogels in drug delivery: from design to application. J Control Release. 2021;332:40–63. https://doi.org/10.1016/j.jconrel.2021.02.012
  5. Lee M, Park HY, Jung KH, Kim DH, Rho HS, Choi K. Anti-melanogenic effects of kojic acid and hydroxycinnamic acid derivatives. Biotechnol Bioprocess Eng. 2020;25:190–196. https://doi.org/10.1007/s12257-019-0421-y
  6. Ishak N, Lajis AFB, Mohamad R, Ariff AB, Halim M, Wasoh H. Kojic acid esters: Comparative review on its methods of synthesis. J Biochem Microbiol Biotechnol. 2016;4(2):7–15.
  7. Bairagi S, Banerjee S, Mulvihill DM, Ahmed S, Ali SW. Extraction, structural properties, and applications of sodium alginate. In: Ahmed S, Ali A, eds. Natural Gums. Elsevier; 2023:599–618. https://doi.org/10.1016/B978-0-323-99468-2.00022-X
  8. Chaturvedi S, Kulshrestha S, Bhardwaj K, Jangir R. A review on properties and applications of xanthan gum. Microb Polym Appl Ecol Perspect. 2021:87–107. https://doi.org/10.1007/978-981-16-0045-6_4
  9. You X, Wang C, Guo N, Liu W. Study on the interaction of kojic acid with tyrosinase by spectroscopic methods. J Chem Chem Mater. 2020;4(2):365–375. https://doi.org/10.25177/JCCMM.4.2.RA.10607
  10. Kulkarni VS, Shaw C. Essential Chemistry for Formulators of Semisolid and Liquid Dosages. Academic Press; 2015.
  11. Chen MX, Alexander KS, Baki G. Formulation and evaluation of antibacterial creams and gels containing metal ions for topical application. J Pharm. 2016;2016:e5754349. https://doi.org/10.1155/2016/5754349
  12. Lakshmi VS, Manohar RD, Mathan S, Dharan SS. Formulation and evaluation of ufasomal topical gel containing selected nonsteroidal anti-inflammatory drug (NSAIDs). J Pharm Sci Res. 2021;13(1):38–48.
  13. Pertiwi D, Hafiz I, Salma R. Antibacterial activity of gel of ethanol extract of papaya leaves (Carica papaya L.) against Propionobacterium acnes. Indones J Pharm Clin Res. 2019;2(1):1–6. https://doi.org/10.32734/idjpcr.v2i1.869
  14. Dantas MGB, Reis SAGB, Damasceno CMD, et al. Development and evaluation of stability of a gel formulation containing the monoterpene borneol. Sci World J. 2016;2016:e7394685. https://doi.org/10.1155/2016/7394685
  15. Al-Suwayeh SA, Taha EI, Al-Qahtani FM, Ahmed MO, Badran MM. Evaluation of skin permeation and analgesic activity effects of carbopol lornoxicam topical gels containing penetration enhancer. Sci World J. 2014;2014:e127495. https://doi.org/10.1155/2014/127495
  16. Bhavanam LR, Kotra V, Mule SR, Khandapu BMK, Bollikolla HB. Synthesis, characterization, anticancer and antimicrobial activity studies of novel isomeric 2,4‐disubstituted ureide derivatives of pyrimidinopiperidines. ChemistrySelect. 2019;4(1):441–450. https://doi.org/10.1002/slct.201803294
  17. Dai X, Gao G, Wu M, et al. Construction and application of a Xanthomonas campestris CGMCC 15155 strain that produces white xanthan gum. MicrobiologyOpen. 2019;8(2):e00631. https://doi.org/10.1002/mbo3.631
  18. Szekalska M, Puciłowska A, Szymańska E, Ciosek P, Winnicka K. Alginate: current use and future perspectives in pharmaceutical and biomedical applications. Int J Polym Sci. 2016;2016:e7697031. https://doi.org/10.1155/2016/7697031
  19. Kiełtyka-Dadasiewicz A, Kubat-Sikorska A. Chemical diversity of mint essential oils and their significance for aromatherapy. Arch Physiother Glob Res. 2018;22:53–59. https://doi.org/10.15442/apgr.22.4.6
  20. Qin J, Zhang G, Ma Z, Li J, Zhou L, Shi X. Effects of ionic structures on shear thickening fluids composed of ionic liquids and silica nanoparticles. RSC Adv. 2016;6(85):81913–81923. https://doi.org/10.1039/C6RA12460G
  21. Ganz M. Formulation and Evaluation of Hydrous and Anhydrous Skin Whitening Products Containing Sodium Ascorbyl Phosphate and Kojic Acid Dipalmitate [dissertation]. North-West University; 2006.
  22. Tanwar YS, Jain AK. Formulation and evaluation of topical diclofenac sodium gel using different gelling agents. Asian J Pharm Res Health Care. 2012;4(1):1–6.
  23. Laxmi RJ, Karthikeyan R, Babu PS, Babu RVVN. Formulation and evaluation of antipsoriatic gel using natural excipients. J Acute Dis. 2013;2(2):115–121. https://doi.org/10.1016/S2221-6189(13)60110-9
  24. Kang M, Choi Y, Byeon S-H. Stability, release, and tyrosinase inhibition behaviors of kojic acid encapsulated in the interlayer space of layered yttrium hydroxide. Appl Clay Sci. 2024;260:e107547. https://doi.org/10.1016/j.clay.2024.107547
  25. Hawkins S, Dasgupta BR, Ananthapadmanabhan KP. Role of pH in skin cleansing. Int J Cosmet Sci. 2021;43(4):474–483. https://doi.org/10.1111/ics.12721
  26. Jacob SE, Scheman A, McGowan MA. Propylene glycol. Dermatitis. 2018;29(1):3–5.
  27. Padmawar A, Bhadoriya U. Glycol and glycerin: pivotal role in herbal industry as solvent/co-solvent. World J Pharm Med. 2018;4(5):153–155.
  28. Biswas S, Chatterjee U, Sarkar S, et al. Fabrication of morphologically modified strong supramolecular nanocomposite antibacterial hydrogels based on sodium deoxycholate with inverted optical activity and sustained release. Colloids Surf B Biointerfaces. 2020;188:e110803. https://doi.org/10.1016/j.colsurfb.2020.110803
  29. Kim J, Hong S, Kim E, et al. Effect of viscosity on ceria abrasive removal during the buff clean process. ECS J Solid State Sci Technol. 2020;9(8):e084003. https://doi.org/10.1149/2162-8777/abb8bc
  30. Khattab IS, Bandarkar F, Khoubnasabjafari M, Jouyban A. Density, viscosity, surface tension, and molar volume of propylene glycol + water mixtures from 293 to 323 K and correlations by the Jouyban–Acree model. Arab J Chem. 2017;10:S71–S75. https://doi.org/10.1016/j.arabjc.2012.07.012
  31. Javadzadeh Y, Adibkia K, Hamishekar H. Transcutol® (diethylene glycol monoethyl ether): a potential penetration enhancer. In: Javadzadeh Y, Adibkia K, Hamishekar H, eds. Percutaneous Penetration Enhancers Chemical Methods in Penetration Enhancement: Modification of the Stratum Corneum. Springer; 2015:195–205. https://doi.org/10.1007/978-3-662-47039-8_12
  32. Caliskan UK, Karakus MM. Essential oils as skin permeation boosters and their predicted effect mechanisms. J Dermatol Skin Sci. 2020;2(3):24–30.
  33. Binder L, Mazál J, Petz R, Klang V, Valenta C. The role of viscosity on skin penetration from cellulose ether‐based hydrogels. Skin Res Technol. 2019;25(5):725–734. https://doi.org/10.1111/srt.12709
  34. Yan C, Kim S-R. Microencapsulation for pharmaceutical applications: a review. ACS Appl Bio Mater. 2024;7(2):692–710. https://doi.org/10.1021/acsabm.3c00776
  35. Saha S, Hazari M, Chaudhuri S. Application of exopolysaccharides in cosmetics. In: Microbial Exopolysaccharides. CRC Press; 2024:215–249.
  36. Ng KW. Penetration enhancement of topical formulations. Pharmaceutics. 2018;10(2):e51. https://doi.org/10.3390/pharmaceutics10020051
  37. Ammar HAM, Ezzat SM, Houseny AM. Improved production of kojic acid by mutagenesis of Aspergillus flavus HAk1 and Aspergillus oryzae HAk2 and their potential antioxidant activity. 3 Biotech. 2017;7:1–13. https://doi.org/10.1007/s13205-017-0905-4
  38. Saraei M, Ghasemi Z, Dehghan G, Hormati M, Ojaghi K. Synthesis of some novel 1,2,3-triazole derivatives containing kojic acid moiety and evaluation for their antioxidant activity. Monatshefte Für Chem. 2017;148:917–923. https://doi.org/10.1007/s00706-016-1844-1
  39. Lobato CC, Ordoñez ME, Queiroz RL, Santos CBR, Borges RS. A comparative study between kojic acid and its methylated derivatives as antioxidant related to maltol and alomaltol. Chem Data Collect. 2020;28:e100464. https://doi.org/10.1016/j.cdc.2020.100464
  40. Liu X, Jiang Q, Xia W. One-step procedure for enhancing the antibacterial and antioxidant properties of a polysaccharide polymer: kojic acid grafted onto chitosan. Int J Biol Macromol. 2018;113:1125–1133. https://doi.org/10.1016/j.ijbiomac.2018.03.007
  41. Wu Y, Shi Y-G, Zeng L-Y, et al. Evaluation of antibacterial and anti-biofilm properties of kojic acid against five food-related bacteria and related subcellular mechanisms of bacterial inactivation. Food Sci Technol Int. 2019;25(1):3–15. https://doi.org/10.1177/1082013218793075
  42. Pritchard MF, Powell LC, Menzies GE, et al. A new class of safe oligosaccharide polymer therapy to modify the mucus barrier of chronic respiratory disease. Mol Pharmaceutics. 2016;13(3):863–872. https://doi.org/10.1021/acs.molpharmaceut.5b00794
  43. Feizabadi GK, Hajizadeh Y, Feizi A, Ebrahimpour K. Urinary concentrations of parabens amongst Iranian adults and their associations with socio-demographic factors. J Environ Health Sci Eng. 2020;18:1227–1238. https://doi.org/10.1007/s40201-020-00540-6
  44. Herman A, Herman AP. Essential oils and their constituents as skin penetration enhancer for transdermal drug delivery: a review. J Pharm Pharmacol. 2015;67(4):473–485. https://doi.org/10.1111/jphp.12334
