Shape-Preserving Techniques with Fractional Order C1 Linear Trigonometric Spline

1. Introduction

Preserving the shape of a given set of points using cubic or trigonometric spline is a significant means to display data as curves and surfaces. Shape preservation entails maintaining the fundamental geometrical characteristics of the data, such as positivity, convexity, and monotonocity. In this research, a method for modelling imperative curves has been developed with the goal of using it in a variety of engineering, scientific, and design fields. It uses piecewise linear trigonometric functions and comprises a novel spline approach. Additionally, the suggested curve model has the most advantageous geometric characteristics. Smooth and eye-catching curves are formed by a number of spline functions. Hence, a trigonometric interpolating curve approach for positive and controlled data is presented in this study. For this purpose, four positive shape parameters used for controlling the shape are being inculcated. Both evenly spaced and unequally spaced data can be used in this method. The benefit of this method is that the interpolating curve may be computed locally, making it possible to locally modify the spline curve. A powerful numerical method based on trigonometric spline functions is also included with the aid of fractional order derivative to find the approximate solutions of the tabulated data points.

It is of little consequence that nonlinear and common integer order derivative mathematical models usually perform poorly. Barsky [1] developed the fundamental aspects related to B-spline basis function in the shape of Beta Spline at various knots. The results showed greater flexibility in curves. Hussain et al. [2] developed positive, monotone, and forced data processing algorithms to display scientific information using rational cubic interpolation. Trigonometric function with shape parameters was introduced by Ibraheem et al. [3] to illustrate the presence of positivity pertinent to the positive curve and surface tabulated data knots. Zhu et al. [4]created quadratic trigonometric interpolation spline curves. Liu et al. [5] studied the shape-parameterized trigonometric polynomial B-spline curves and surfaces. A vital contribution in computer aided geometric design was provided by Sarfraz et al. [6]. They introduced various spline methods for shape modeling. Spline approaches have emerged as one of the primary tools for addressing the bulk of issues related to the path of functions including interpolation issues [7].

Fractional calculus has become increasingly significant in recent years in a number of disciplines including signal and image processing, control theory, chemistry, and mechanics. Caputo form of fractional order derivative remains a relatively new and an easy to use approach which is being adopted by various scientists in different areas of interest. FDEs have attracted significant attention because of their ability to model composite phenomena, such as visco-elastic materials [8], economics [9], and continuum and statistical mechanics [10].Caputo fractional order derivative with linear trigonometric spline function has been applied to monotone increasing or decreasing data with better accuracy [11]. Singh et al. [12] suggested that the easiest way to model physical and engineering processes using fractional calculus is by utilizing fractional differential equations. Kirman et al. [13, 14] addressed this issue with the use of cubic and bi-quadratic Caputo fractional order spline. Samreen et al. [15] examined shape-preserving curve interpolation for positive, monotonic, and convex data above a line. Theyused a piecewise rational cubic function with four form parameters.

Trigonometric splines have been utilized by certain authors to characterize curves and surfaces for shape-preservation [15]. Samreen et al. [16] provided a competent method to calculate the Bézier points of a generalized cubic β-spline curve and demonstrated how multiple knot insertion is related. Additionally, they identified the vertices of a composite Bézier spline curve.

The current paper presents the general form of fractional order trigonometric spline. It also contains the development of the most recent spline with Caputo derivative, with four free parameters, derivative estimation, and geometric interpolation qualities in each sub-interval. The figures include a shape control analysis. This study also discusses shape-preserving interpolation applications which take limited data modeling and positivity preservation into account. The automated choice of two parameters ensures the shape-preserving properties. It also compares quadratic Lagrange and cubic spline accompanied with graphical results. Further, a recursive algorithm for creating a string of fraction spline curves is also provided.

2. FRACTIONAL ORDER TRIGONOMETRIC SPLINE

In this section, the C¹ trigonometric polynomial with shape parameters is developed. The trigonometric spline (T-spline), defined for μ∊ [μ_i, μ_(i+1)], μ_iμ_(i+1), ⩝i = 0, 1, ….. n-1, with unknown constants a_i,b⁽ⁱ⁾,c_i,d_i is described by the equations given below.

P_i (μ)=a_i+b_i (μ-μ_i)+c_i sin⁡(μ-μ_i)+cos⁡k(μ-μ_i)⁡ , for μ∊ [μ_i,μ_(i+1) 1)

P_(i+1) (μ)=a_(i+1)+b_(i+1) (μ-μ_(i+1) )+c_(i+1) sin⁡k(μ-μ_(i+1) )+d_(i+1) cos⁡k(μ-μ_(i+1)), for μ∊ [μ_(i+1),μ_(i+2)] (2)

These two polynomials join three points, namely (μ_i,y_i), (μ_(i+1),y_(i+1)), and (μ_(i+2),y_(i+2)) with the following properties,

(P_i (μ_i )= y_i, P_i (μ_(i+1) )=y_(i+2),@ P_i (μ_(i+1) )= P_(i+1) (μ_(i+1) ), P_(i+1) (μ_(i+1) )=y_(i+1),P_i^α (μ_(i+1) )=-P_(i+1)^α (μ_(i+1)), P_i (μ_(i+1) )=P_(i+1)(μ_(i+1)).) (3)

Where "α" is a derivative of fractional order, such that 0 < α < 1.a

In order to find the fractional order derivatives, the following equations are used.

Left-fractional Left-fractional=1/(τ(1-α_l)) ∫α(μ_i)(P_i^(μ))/(μ_i-τ)(α_l) dτ

Right-fractional=-1/(τ(1-α_l))∫_(μ_(i+1))^s(P_(i+1)^(μ))/((τ-μ_(i+1))^(α_l) dτ, where α_l∊(0,1) for l=1,2,3

A C¹ continuous trigonometric spline curve can be created. The above continuity and differentiability conditions show that there are eight constants in particular, namely a_i,b_i,c_i,d_i,a_(i+1),b_(i+1),c_(i+1),and d_(i+1). The integral of the right side interval from a bigger value to a smaller value is shown by the negative sign in fractional order, which is μ_i in the given situation. Three (03) different values can be assigned to α=α_l, somewhere in the range of 0 and 1, to get eight (08) conditions in order to get a unique answer for each constant.

At point,m μ=μ_(i+1) through the use of the continuity and differentiable conditions in (3). We possess the subsequent trigonometric polynomial represented in equation format.

A_ij B_i =C_i,i,j=0,…7 ,

where A_ij is a matrix of coefficients whose values are as follows:

A₀0=1, A₀1=0, A₀2=0, A₀3=0, A₀4=0, A₀5=0,A₀6=0, A₀7=0,

A₁1=1,A₁2=k cos⁡h_i ,A₁3=-k sin⁡kh_i ,A₁4=0,A₁5= 1,A₁6=1,A₁7=0 A₁7=0,A₂₀=1, A₂₁=h_i,A₂₂=sin⁡kh_i , A₂₃=cos⁡kh_i ,A₂₄=1,A₂₅=0,A₂₆=0, A₂₇=1, A₆₀=0,A₆₁=0,A₆₂=0,A₆₃=0,A₆₄=1,A₆₅=h_(i+1),A₆₆=sin⁡kh_(i+1) ,A₆₇=cos⁡kh_(i+1) ,A₇0=0,A₇1=0,A₇2=0,A₇3=0,A₇4=1,A₇5=0,A₇6=0,A₇7=1.

To evaluate the remaining coefficient the following equations for j=3,4,5 and p_j=α_(j-2) are used,

A_j0=0, A_j1=(-t+μ_(i+1))²/(1-p_j ),

A_j2=(-k cos⁡(-1+p_j )t-(-2+p_j ) μ_i-μ_(i+1))(-t+μ_(i+1) )^(1-p_j ))/((-2+p_j)(-1+p_j)),

A_j3=(k sin⁡k((-1+p_j )t-(-2+p_j ) μ_i-μ_(i+1)) (-t+μ_(i+1) )^(1-p_j ))/(-2+p_j )(-1+p_j)

A_j4=0, A_j5=(s-μ_(i+1))^(1-p_j )/(1-p_j ),

A_j6=-(k cos⁡k(s-μ_(i+1))^(1-p_j) ((-1+p_j )s-(-2+p_j ) μ_i-μ_(i+1) ))/(2-3p_j+p_j² ),

A_j7=(k sin⁡k(s-μ_(i+1))^(1-p_j ) ((-1+p_j )s-(-2+p_j)μ-μ_(i+1)))/(2-3p_j+p_j² ).

The coefficient of vector C_i is as follows:

C₀=y_i,C₁=0,C₂=0,C₃=0,C₄=0, C₅=0, C_6=y_(i+2,) C₇=y_(i+1).

A total of 8 equations and 8 unknown constants make up this set. Here, the shape parameters ‘s’ and ‘t’ from the above formula are used.

Table 1.Point in μy-plane

Table 2.Points in the μy-plane

Table 3. Points in the μy-plane

Table 4. Derivatives of Fractional Order for α

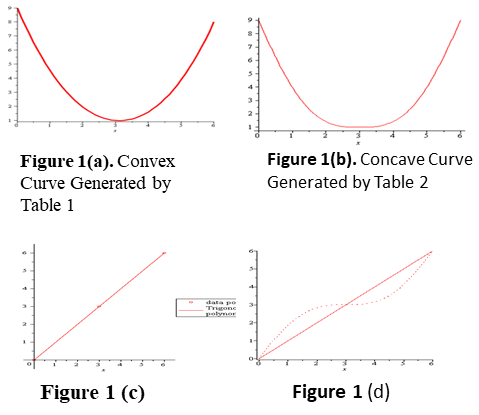

When employing the data points from Table 1 to construct a trigonometric polynomial, the curve exhibits convexity, as depicted in Fig. 1(a). Conversely, utilizing the data points from Table 2 to form a trigonometric spline results in a concave curve, as shown in Fig. 1(b). Figures 1(c) and 1(d) illustrate the outcomes when the values from Table 3 are utilized. The figures depict that trigonometric spline transforms into a straight line.

An example in Table 4 illustrates the fractional order trigonometric spline, utilizing both first derivative and fractional derivatives with values ranging between 0 and 1 for α.

3. VARIATION IN T-SPLINE AT DIFFERENT VALUES OF CONSTANT k

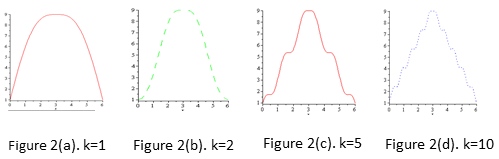

Different values of constant were assigned to trigonometric polynomials and Figures (2a-2d) show how varying the constant k influences the shape of the data points depicted in Fig. 1(a) as the following curves.

Figures (2a-2d) show the effect of constant k.

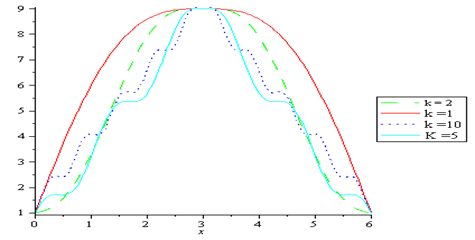

Figure 2. Comparison between Different Values of Constant in T-Spline

4. EFFECT OF CONTROL PARAMETERS s AND t ON T- SPLINE

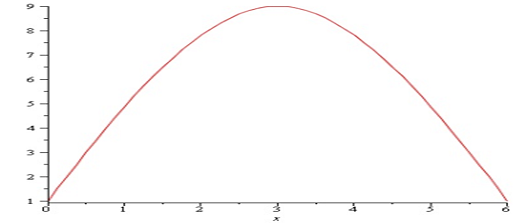

The control parameters "s" and "t", presented in the equations (1) and (2), may affect the shape of the curve, which is very clear in Figs. (3a-3d). When "s" and "t" converge to μ_i and μ_(i+2) respectively, then the curve shape begins to convert in convex curve.

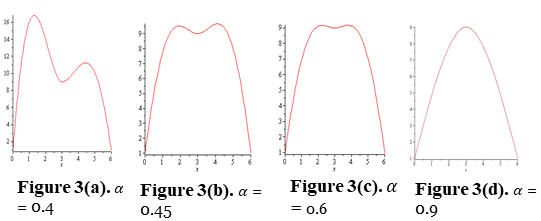

Figures (3a-3d) show the effect of fractional derivative of order “𝛼”. The fractional derivative order does not change the basic entity of the curve in any way. The impact of the final shape still passes through the same data point. Various values of factional derivative “α” have been assigned, as highlighted in Table 5. These fractional derivatives have a noticeable impact on the end shape of curve, as seen in Fig. 3.

Figure 3. Fractional spline and classical spline coincide when 𝛼 = 0.95.

Table 5. Derivatives of Fractional Order for Various Values of α

5. QUADRATIC LAGRANGE AND CUBIC SPLINE COMPARISON WITH TRIGONOMETRIC SPLINE

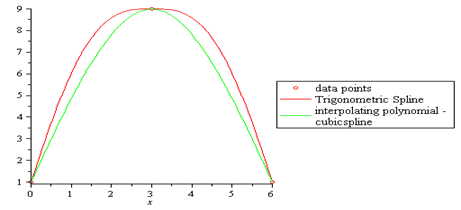

Fig. 4(a) makes it clear that the methods used to find the cubic spline curve and the method described in this paper are equivalent. In both instances, the same data points from Table 1 have been used to obtain the outcome shown in figures 1 and 4(a).

Figure 4(a). Comparison between Cubic Spline and Trigonometric Spline

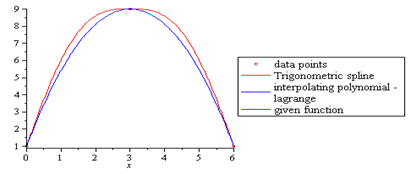

In both situations, identical data points from Table 1 have been used to compare quadratic and trigonometric splines. The results are shown in figures 1 and 4(b).

Figure 4(b). Comparison between Quadratic Langrage Polynomial and Trigonometric Spline

A formula for generating a sequence of fraction spline curves recursively for the points (μ_i, y_i) , i= 0,1,2,⋯,n, where μ₀<μ₁<μ₂… <μ_n, there is a defined algorithm in this section for three data points, namely μ₀, μ₍₁₎ and μ₍₂₎Additional curves can be created once the first two curves are generated P_i (μ) for i=2,3,…n-1 applying the previously elaborated conditions,

P_(i+1) (μ_(i+2))=P_(i+2) (μ_(i+2)),

P_(i+2)(μ_(i+3) )=y_(i+3),

P_(i+1),(μ_(i+2) )=P_(i+2),(μ_(i+2)),

P_(i+1)α (μ_(i+2))=P_(i+2)^α(μ_(i+2)) (4)

Since

P_i (μ)=a_i+b_i (μ-μ_i )+c_i sin⁡k(μ-μ_i)+d_i cos⁡k(μ-μ_i), for μ∈ [μ_i,μ_(i+1)].

In this case, there are four (04) unknown constants and four (04) conditions (4). By using condition these equations come from

C₁=a_(i+2)+d_(i+2),

y⁽ⁱ⁺³⁾=a_(i+2)+b_(i+2) h_(i+2)+c_(i+2) sinkh_(i+2)+d_(i+2) coskh_(i+2),

C₃=b_(i+2)+kc_(i+2),

C₄=b_(i+2) A_j5+c_(i+2) A_j6+d_(i+2) A_j7.

Using Gaussian Elimination method, for each subsequently occurring interval, the recursive relation is listed below.

a_(i+2)=c₄ g₁-c₄ h_(i+2) k-A_j5 c₃ g₁-A_j6 y⁽ⁱ⁺³⁾+A_j6 h_(i+2) c₃+A_j5 ky⁽ⁱ⁺³⁾-c₁ A_j7 g₁+c₁ A_j7 g₁+c₁ A_j7 h_(i+2) k+c₁ A_j6 g₂-c₁ A_j5 kg₂/-A_j7 g₁+A_j7 h_(i+2) k+A_j6 g₂-A_j6-A_j5 kg₂+A_j5 k

b_(i+2)=kc₄-c₄ g₂ k+ky⁽ⁱ⁺³⁾ A_j7-kc₁ A_j7-A_j7 g₁ c₃+A_j6 c₃ g₂-c₃ A_j6/-A_j7 g₁+A_j7 h_(i+2) k+A_j6 g₂-A_j6-A_j5 kg₂+A_j5 k

c_(i+2)=-c₄-g₂ A_j5 c₃-A_j7 c₃ h_(i+2)-g₂ c₄+A_j7 y⁽ⁱ⁺³⁾-A_j7 c₁-c₃ A_j5/-A_j7 g₁+A_j7 h_(i+2) k+A_j6 g₂-A_j6-A_j5 kg₂+A_j5 k

d_(i+2)=-c₄ g₁-c₄ h_(i+2) k-A_j5 c₃ g₁-A_j6 y⁽ⁱ⁺³⁾+A_j6 c₁+A_j6 h_(i+2) c₃+A_j5 ky⁽ⁱ⁺³⁾-c₁ A_j5 k/-A_j7 g₁+A_j7 h_(i+2) k+A_j6 g₂-A_j6-A_j5 kg₂+A_j5 k

Where g₁=sin⁡kh_(i+2) , g₂=cos⁡kh_(i+2) .

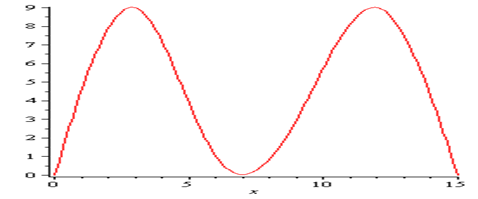

For a specific value of j, this represents the previously determined fractional order derivative. A specified collection of data points is examined according to the intended approach and the outcomes are shown in Fig. 5(a) and Fig. 5(b).

Table 6. Set of Convex and Concave Data Points

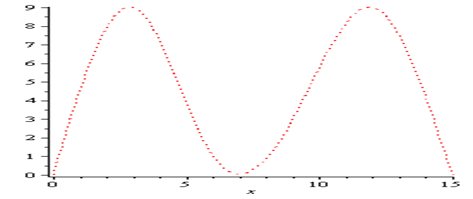

Figure 5(a). Fractional Convexity Concavity in Points Form

Figure 5(b). Fractional Convexity and Concavity in Curve Form

6. STRENGTHS AND LIMITATIONS

The benefit of this method is that the interpolating curve may be computed locally, making it possible to locally modify the spline curve without changing the control points. In this study, fractional derivatives have been used to control and manipulate the curve without shuffling the data points. Different values have been assigned to the factional derivative α, as given in Table 4. Fig. 4 shows the effect of these fractional derivatives on the shape of the curve. Table 5 illustrates how the fractional order α controls the path of piecewise curves. The aforementioned information shows that when 0.7 < α < 1, both ordinary cubic spline and fractional order cubic spline follow almost the same path. When α < 0.7, the fractional cubic spline strays from the original path. Due to this reason, the result is a better control on the curve and the path can be modified as needed.

7. CONCLUSION

All the necessary qualities are satisfied by the trigonometric spline introduced in this study. Shape parameters enable visual smoothness to be adjusted without altering the control points. Trigonometric basis functions give these curves the ability to construct convex, concave, horizontal straight lines, and other geometric shapes, which gives them enormous importance. The trigonometric spline shown in this study is able to retain the characteristics of the actual data and provides a more accurate depiction in addition to generating a very flexible and pleasing curve.

In this study, trigonometric spline has been created to address the problem with several shape-preserving techniques. Each subinterval of the produced spline contains four (04) free parameters. Two (02) of these parameters have built-in constraints to maintain the positive shape of the data, while the other two are open to shape adjustment. Additionally, the error of produced polynomial interpolation is observed. trigonometric function with four (04) shape parameters has been developed to maintain positivity and warrant smoothness.
