Predictive ARIMA Model with a Machine Learning (ML) Approach for COVID-19 Data in Pakistan

1. Introduction

Coronavirus Disease 2019 (COVID-19), caused by the simple acute respiratory syndrome virus 2 (SARS-CoV-2), was initially detected in China in December 2019. In a very brief period of time, it spread worldwide. COVID-19 has affected more than 209 countries with over 120 million confirmed cases by March 2021. This is not the first outbreak of a coronavirus. Previously, a different type of the virus caused the acute respiratory syndrome known as Middle East Respiratory Syndrome (MERS), which emerged in 2003 and 2012 in Middle Eastern countries. The disease is caused by the Middle East Respiratory Syndrome Coronavirus (MERS-CoV) [1–4]. The initial symptoms of the COVID-19 patients are minimal fever and dry cough which appear between 2 and 14 days after getting infected. Other symptoms may include severe nosebleed and shortness of breath, and these may even cause death [1–3]. The symptoms of COVID-19 are shown in Figure 1.

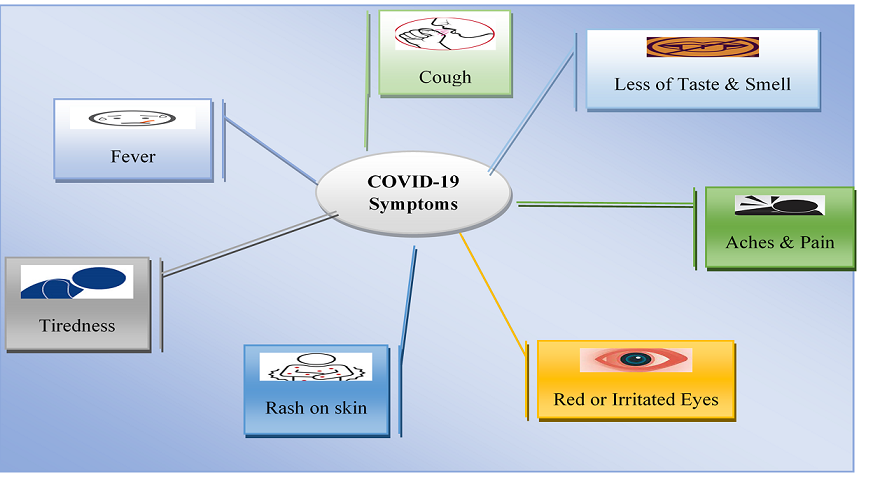

Figure 1. Symptoms of COVID-19

In late 2019, researchers in China identified a novel coronavirus responsible for a respiratory illness, therefore, initially termed Novel Coronavirus Pneumonia (NCP) due to its primary effects on the respiratory system [1, 2, 5–7]. This virus was later officially named Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) by the International Committee on Taxonomy of Viruses [6, 8]. The COVID-19 pandemic has been recognized as one of the most significant global health crises in history. To understand and manage the spread of the virus, various epidemiological models have been employed. These models, which include both classical and advanced approaches, are used to analyze transmission dynamics and predict future trends. Researchers have explored numerous hypothetical parameters to refine these models and improve their accuracy in forecasting disease progression (see Figure 2).

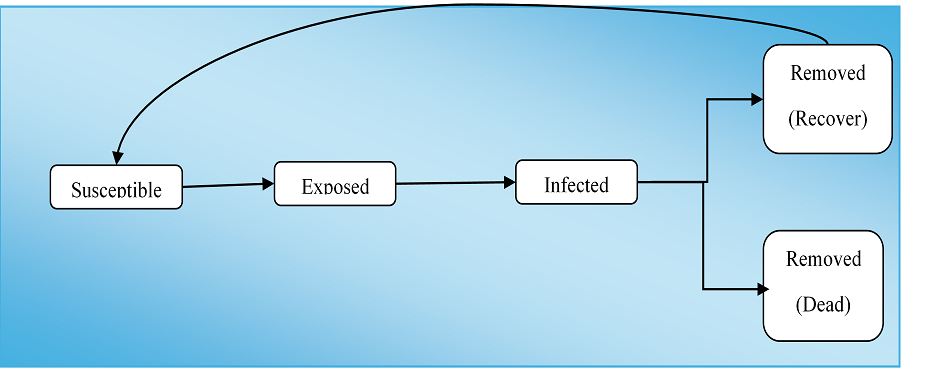

Figure 2. The Flowchart Shows Patient History

The first COVID-19 case in Pakistan was reported on February 26, 2020, in Karachi. By March 15, 2020, the virus had spread to all provinces of Pakistan (Punjab, Sindh, Khyber Pakhtunkhwa, Balochistan), as well as Gilgit-Baltistan, Azad Jammu and Kashmir, and the capital city, Islamabad. As of September 30, 2021, Pakistan has recorded over 1,246,538 cases, 1,170,590 recoveries, and 48,163 deaths. This study aims to forecast COVID-19 trends from February 26, 2020, to September 30, 2021, using stochastic time series analysis. The analysis relies on a single variable to predict COVID-19 infection rates and aims to develop a robust model for forecasting the pandemic's progression.

Early literature on COVID-19 dynamics has employed various methodologies [3, 8]. Many of these approaches use compartmental models, which divide the population into different compartments to describe the spread of infectious diseases. In this study, we propose Box-Jenkins Auto Regressive Integrated Moving Average (ARIMA) models, integrated with machine learning techniques. The ARIMA (p, d, q) model is selected for its effectiveness in time series forecasting, combining autoregression, differencing, and moving averages to analyze and predict daily COVID-19 data.

Machine learning (ML) algorithms are used to solve many complex problems in various fields, such as business, climatology, healthcare, and robotics [4, 9]. Unlike conventional algorithms, ML algorithms are based on the trial-and-error method. It is generally used for forecasting and prediction [7, 9–15]. The regression and neural network models can predict a patient's future condition for specific diseases [10]. In this study, ML is used to predict COVID-19 data.

2. DATA SCATTERING AND METHODS

To investigate and measure accurate prediction of the COVID-19 pandemic across Pakistan, including all four provinces (Sindh, Punjab, Khyber Pakhtunkhwa, Balochistan), as well as Gilgit Baltistan, Azad Jammu and Kashmir and the capital city Islamabad. Data was collected from the WHO website on a daily basis. Data was collected for the period 26 February 2020 to 30 September 2021. Data was collected separately for the four (4) waves of the pandemic, starting from 26 February 2020 to 21 October 2020, 22 October 2020 to 16 March 2021, 17 March 2021 to 10 July 2021, and 11 July 2021 to 30 September 2021. We computed the stationary of the data set, the residual of the data panel, and detached the pointless errors from prediction models.

The ARIMA model, combined with machine learning techniques, is considered a superior predictive model compared to uncorrelated models and those based on neural networks, which are part of artificial intelligence (AI). These stochastic univariate methods, such as regression or support vector machines, to analyze and predict trends in time series data.

The ARIMA model, when combined with machine learning techniques, integrates the fundamental concepts of autoregression, differencing, and moving averages to accurately forecast future values and analyze time series data [1, 2, 6]. This approach effectively handles non-stationary data through differencing, improving accuracy in capturing trends and seasonality within the time series. Therefore, integrating ARIMA with machine learning algorithms enhances the model's predictive capabilities.

In this study, we utilize stochastic series within ARIMA models to analyze the observed datasets. We are applying various statistical tests, such as the Dickey-Fuller test to assess time series trends and the statistical properties of the data. The integration of Box-Jenkins's ARIMA model with machine learning algorithms for predictive analysis is illustrated in Figure 3. Keeping in view the primary focus on COVID-19 cases, ARIMA models are employed to examine the spread and impact of the virus. We conduct 14-day forecasts for each wave of data, specifically (1) October 21, 2020, to November 4, 2020; (2) March 17, 2021, to March 30, 2021; (3) July 11, 2021, to July 24, 2021; and (4) September 31, 2021, to October 13, 2021. This study demonstrates how integrating ARIMA models with machine learning algorithms enhances predictive capabilities for COVID-19, exploring additional variables and data sources from previous time intervals.

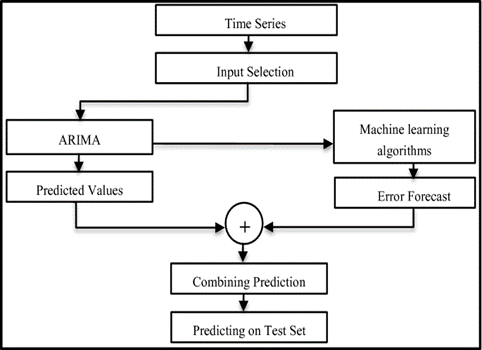

Figure 3. General Structure of ARIMA with ML Algorithm [3]

2.1. Predictive ARIMA Models

In this study, ARIMA models integrated with ML algorithms are used for future prediction and model validation for 14-days forecasting simulations. Many time series datasets exhibit irregularities, seasonality, cyclic patterns, and trends. These characteristics do not always conform to a specific pattern in every time series model. These components help to find suitable predictive approaches for short-term investigations [3, 8]. ARIMA models are used to provide explanations through a broad statistical methodology. The procedure is as follows.

Step 1: Examine the data for high frequency components, non-constant mean μ and variance σ2. Assess seasonality (e.g., daily, weekly) and test for stationarity.

Step 2: Model functions are formulated, and parameters are obtained based on the assumption that the data series remains stationary in Step 1.

Step 3: Diagnosis checking is applied to obtain the validation of the model assumptions of Step 1 and hypothesis confirms that residuals should be satisfied with zero mean μ, constant variance σ2 and normal distribution for uncorrelated process . When both variables are independent, then their correlation would be 0.

Step 4: In the final step, the model is ready to make prediction. go to step 2 and compute the predicted data values.

These steps mainly analyze the prediction of time series data sets. The Augmented Dickey-Fuller test confirms the stationary components, such as constant mean, constant variance, and auto covariance which are not time dependent. The theory of ARIMA models is known as the Box-Jenkins method. An ARIMA model is a procedure of univariate regression analysis that predicts future values based on differences among values, rather than actual values. The ARIMA model integrates three main components to analyze time series data. The first component is Auto Regression (AR), which models how the current value of a variable is influenced by its previous values. It captures the relationship between a variable and its lagged values. The second component is Integration (I), which involves differencing the data to achieve stationarity. This process adjusts the data by subtracting previous values from current values to account for trends and make the time series stationary. The third component is Moving Average (MA), which models the relationship between a variable and the residual errors from a moving average of past observations. It smooths out fluctuations in the data by averaging data points over a specified period. Together, these components enable the ARIMA model to effectively analyze and forecast time series data.

The ARIMA (p, d, q) is obtained as follows.Here, the theoretical y denotes the d^th difference of Y, in expressions of y.

When d = 0, then

y_t=Y_t (1)

When d = 1, then

y_t=Y_(t-) Y_(t-1) (2)

When d = 2, then

y_t=(Y_(t-) Y_(t-1))-(Y_(t-1)- Y_(t-2)) (3)

In ARIMA models, depends on its own lagged value. In MA (moving average), the value of depends on lagged predictive errors. Thus, the predictive value depends on its previous (lagged) value. The number of iterations with can be represented by

y_t=∅₁ y_(t-1)+∅₂ y_(t-2)+⋯+∅_p y_(t-P)+ ω_t(4)

y_t=ω_t+θ₁ y⍵_(t-1)+θ₂ y⍵_(t-2)+⋯+θ_q y⍵_(t-q) (5)

To detect the suitable ARIMA model for accordingly, obtaining the differencing (d) order must be stationary of the series. If the stationary series is silent then it has auto correlated errors. It suggests that the prediction equality of various values of AR and MA expressions (p and q ≥ 1) are required in the predicting procedure by AR and MA models. The syntax of the ARIMA model is as follows:

ARIMA (< Data interval _ Name > {Target value_ Label}, order = (p, d, q).(6)

In time-series analysis, there are various measurement tools for model selection. The best fitted predictive evaluation criteria are discussed below.

2.2. Model Predicting Diagnostic Tools

For the predictive analysis of observed intervals using ARIMA, descriptive statistics of the dataset were examined. To assess the performance of the ARIMA models, various metrics including test statistics, p-values, lags, and the number of observations were considered in graphical representations. The results indicated that the data were not stationary. Subsequently, the model was used to estimate the trends, and the Dickey-Fuller test was employed to test for stationarity. Additionally, the Auto Correlation Function (ACF) and Partial Auto Correlation Function (PACF) were analyzed to further evaluate the dataset's characteristics, supported by graphical exhibitions to determine the value of Q and P. Furthermore, the AR and MA models were implemented which predicted the future, successfully [1, 3, 12]. Finally, we converted the dataset into the cumulative sum and plotted the diagrams.

The Mean Absolute Scaled Error (MASE) is the extent of the exactitude of the forecasted values and obtained through dividing the means absolute error of the predicted value by the mean absolute error of the original data [15], mathematically written as follows:

MASE= (1/J ∑_j(e_j)/(1/T ∑_(t-2)^T(Y_t-Y_(t-1)) (7)

The Symmetric Mean Absolute Percentage Error (SMAPE) is a measurement of accuracy based on percentage [1, 2]. The difference between A_t and F_t, the actual value and forecasted value is divided by the half of sum of these two values and calculated by

SMAPE= (100%)/n ∑_(t-1)ⁿ (F_t-A_t)/ (F_t+A_t)⁄2) (8)

 The Mean Absolute Error (MAE) measures the errors in the observations. It is stated as follows:

MAE= (∑_(i=1)ⁿ(e_i)/n, (9)

where is the absolute error which is the difference of predicted value Yi and true value Xi. The Root Mean Square Error (RMSE) is the sum of error and variance based on the difference between predicted values and true value . It is calculated by

RMSE= √([1/n ∑_(i=1)ⁿ(Y_i-X_i )]² ) (10)

The BIC is normally considered to select models in the linear exponential regression [1, 3, 6].

BIC=lnσ ̂²+(p+q)ln⁡(ln⁡(n)/n (11)

The BIC function is directly associated to Akaike Information Criterion (AIC) [1, 4, 8].

The value of predictive ARIMA is computed and provided in the Results and Discussion section. The optimal values of the fitted 14-day predictive model is evaluated by 95% CI for the predictive value.

2.3. The 14-day Prediction Testing

The 95% CI for the predicted values of the novel COVID-19 virus in Pakistan is calculated by using the following equations:

ӯ±t_crict.s.e

and

s.e=Sy_x √(1/n+(x-x ̄)²/(SS)_x

The results show the 14-day forecasted values of the novel COVID-19 pandemic across four (4) waves in Pakistan. The forecasted values can be calculated through the equation

ӯ₀±t_crict.s.e,

where the standard error of the predicted values is calculated through

s.e=Sy_x √(1/n+(x₀-x ̄)²/(SS_x ).

2.4. Computational Structure for Model Selection by ML Algorithm

In this section, we select the model with appropriate parameters (p, d, q) of the ARIMA models using ACF and PACF graphs. For this purpose, we applied the ML algorithm for non-stationary exhibition of data series by using correlograms ACF and PACF. Time series plots (1(a-d)) were performed. Autocorrelation slightly decrease as the number of delays increases. To manage the data sets in a proper manner for the selection of the appropriate model, the unit root test was used at different levels. The ARIMA (p, d, q) models require an average processing time of only 7 seconds to perform each simulation on the computer.

The datasets derived from the four (4) waves of COVID-19 is considered as trained data (observed values) and validation data (forecasted values) of daily infected cases in Pakistan. By utilizing the trained datasets, suitable models were recognized, and validation datasets were used to find the projecting act of the model. ML tools were observed by UCL and LCL graphical values for all waves data sets (Figure 7 (a-d)). Model forecasting of each data set was investigated on RMSE, MAPE, and MASE. For data sets, MAE and BIC were found to have the least value to estimate the dynamics of the COVID-19 outbreak across the country in all waves. The estimates made by the ARIMA models were compared with the actual infected dataset observed for 14-day prediction of each wave separately, with the standard error 95% CI. The values of the parameter's alpha, beta, and gamma were confirmed for 14 days prediction.

3. RESULT AND DISCUSSION

This research study presents an optimized ARIMA-ML-based stochastic Box-Jenkins predictive model used to forecast COVID-19 daily infected cases in Pakistan, as described in Section 2. The data covers the period from the 1st wave (26 February 2020) to the 4th wave (30 September 2021), including the entire dataset of Pakistan along with other selected regions.

Firstly, the unit root test results for stationarity (ADF at 1%, 5%, and 10%) are presented in Table 1(a-h), representing data from Pakistan including the provinces of Sindh, Punjab, Khyber Pakhtunkhwa, and Balochistan, as well as Gilgit-Baltistan, Azad Jammu and Kashmir, and the capital city Islamabad. The -values for all datasets are less than 0.05 ( ), indicating statistical significance. Time series data were computed as stationary with an integrated order I(1), as AR and MA aspects in an ARIMA model applied only to stationary datasets. Initially, parameters and were identified with exponential decay starting at lag 1, and no further correlations were found within additional lags, as depicted in the ACF and PACF plots for the period February 2020 to September 2021 in Pakistan, shown in Figure 4(a-d).

Table 1. (a) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Pakistan

Table 1. (b) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Punjab

Table 1. (c) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Sindh

Table 1. (d) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Khyber Pakhtoon Khuwa

Table 1. (e) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Balochistan

Table 1. (f) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Gilgit Baltistan.

Table 1. (g) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Azad Jammu and Kashmir

Table 1. (h) Results of ADF and ERS Test for Unit Root of All Four Waves of COVID-19 in Islamabad

Figure 4 (a). Correlogram Plots During 1^st wave (26 Feb 2020 to 21 October 2020).

Figure 4 (b). Correlogram for the 2^nd wave (22 October 2020 to 16 March 2021)

Figure 4. (c). Correlogram for the 3^rd wave (17 March 2021 to 10 July 2021)

Figure 4. (d). Correlogram for the 4^th wave (11 July 2021 to 30 September 2021).

To compute the cumulative trained observations, we utilized the datasets for training the fitted ARIMA (1, 1, 1) model for the first wave (26 February 2020 to 21 October 2020), and the fitted ARIMA (1, 1, 7) model for the second to fourth waves (22 October 2020 to 16 March 2021, 17 March 2021 to 10 July 2021, and 11 July 2021 to 30 September 2021). These models were statistically appropriate, with R² values of 0.1266, 0.2549, 0.11, and 0.782, respectively. The minimum values for AIC and BIC were 14.56, 14.61, 14.327, 14.409, 15.02, 15.11, 15.18, and 15.29, confirming the model's accuracy across Pakistan.

The model's validity was further confirmed using diagnostic tools such as RMSE, MAPE, Max APE, MAE, the Ljung-Box Q test, and BIC. Various error parameters (mean, sum of error, minimum, maximum) and forecasted values are shown in Table 2 and Figure 5(a-d). These gradient and residual graphs for the fitted ARIMA (1,1,1) and ARIMA (1,1,7) models demonstrate that the data points deviate slightly from the fitted model, highlighting the model's robustness and accuracy.

Table 2. Different Errors and Parameters of Forecasted Values of Four Different Waves of COVID-19 in Pakistan

Figure 5 (a). Gradient and Residual Graph for Fitted ARIMA (1, 1, 1) for the First Wave of COVID-19 in Pakistan

Figure 5 (b). Gradient and Residual Graph for Fitted ARIMA (1,1,7) for the Second Wave of COVID-19 in Pakistan

Figure 5 (c). Gradient and Residual Graph for Fitted ARIMA (1,1,7) for the Third Wave of COVID-19 in Pakistan

Figure 5 (d). Gradient and Residual Graph for Fitted ARIMA (1,1,7) for the Fourth Wave of COVID-19 in Pakistan

Table 3. Basic Statistics of the Daily Cases of COVID-19 in Pakistan Including its four Provinces, GB, AJK and Islamabad City

The provinces of Punjab and Sindh showed the fitted ARIMA models (1, 1, 2), (1, 1, 1), (1, 1, 7), (1, 1, 6), and (1, 1, 5) for the first to fourth waves of the pandemic. Specifically, the ARIMA (1, 1, 1) model was suitable for the first, second, and fourth waves, while the ARIMA (1, 1, 7) model was useful for the third wave. In Khyber Pakhtunkhwa (KPK), the ARIMA (1, 1, 2) and ARIMA (1, 1, 1) models were found appropriate for the first, second, third, and fourth waves. Similarly, in Balochistan, the ARIMA (1, 1, 1) model found best fitted for all four waves. In Gilgit-Baltistan, ARIMA (1, 1, 1) was found to be the best fit for all four waves. For Azad Jammu & Kashmir, ARIMA (1, 1, 2) worked best for the first and second waves, while ARIMA (1, 1, 7) and ARIMA (1, 1, 2) were best for the third and fourth waves. For Islamabad, the ARIMA (1, 1, 4) model was suitable for the first wave, while ARIMA (1, 1, 1) was for the remaining three waves of the pandemic.

Table 3 shows the fitted models for each dataset of COVID-19. The diagnostic tools revealed that MAE had the smallest value compared to RMSE and MAPE. Figure 5(a-d) shows residuals and gradient plots of all waves across the selected datasets. In this analysis, the smallest parameters and greater degrees of freedom confirmed the suitability of ARIMA (1, 0, 1). For most of the selected datasets, ARIMA (1, 1, 1) and ARIMA (1, 1, 7) were found to be the best-fitting models for each wave. Various time series required differencing until they became stationary, with "d" which represents the degree of differencing to achieve stationarity.

The purpose of this research is to predict all four waves of the COVID-19 pandemic using the appropriate ARIMA models and a 14-day forecast for each dataset. The next 14-day predictions were made for each wave from 21 October 2020 to 4 November 2020, 16 March 2021 to 30 March 2021, 10 July 2021 to 24 July 2021, and 30 September 2021 to 14 October 2021 in Pakistan, with standard errors computed at a 95% confidence interval. The assessment of trained (observed) and predicted values for each wave of the Pakistan datasets is presented in Table 4. The performance of observed and predicted data is depicted in Figure 6 (a-d). The blue line represents the actual data values, the orange line shows the predicted data, and the two red lines indicate the upper and lower limits of the confidence interval (C.I.) for the standard deviation in all waves across Pakistan. These three lines illustrate the estimated standard deviation and variance of the predicted data for COVID-19 across all waves in Pakistan.

Table 4. Predicted and Observed Values of Four Different Waves of COVID-19 in Pakistan

Moreover, the highest correlation for each wave in Pakistan is greater than 0.8 between predicted and observed data, proving the model's sufficiency and consistency. This is depicted in Table 5 and Figure 7 (a-d), where the red line represents observed values, the blue line represents fitted values, and the dotted lines show the upper and lower control limits (UCL and LCL) for model predictions for the first to fourth waves of data across Pakistan, including Sindh, Punjab, Khyber Pakhtunkhwa, Balochistan, Gilgit-Baltistan, Azad Jammu & Kashmir, and Islamabad. The results indicate that the ARIMA-ML technique is highly effective for epidemic modelling.

Figure 6 (a). Actual and forecasted values of the 1^st wave of the pandemic in Pakistan ranging from 26 Feb 2020 to 20 Oct 2020 and 21 Oct 2020 to 4 Nov 2020

Figure. 6 (b). Actual and Forecasted Values of the 2^nd wave of the Pandemic in Pakistan Ranging from 22 Oct 2020 to 16 March 2021 and 17 March 2021 to 30 March 2021

Figure. 6(c) Actual and Forecasted Values of 3^rd Wave of the Pandemic in Pakistan Ranging from 17 March 2021 to 10 July 2021 and 11 July 2021 to 24 July 2021

Figure. 6(d) Actual and Forecasted Values of the Fourth Wave of the Pandemic in Pakistan Ranging from 11 July 2021 to 30 Sep 2021 and 1^st Oct 2021 to 14 Oct 2021.

Table 5. Correlation between Trained and Predictive Data Sets

Figure 7 (a). Graph of Observed, Fit, UCL, and LCL Values of COVID-19 (from 26 Feb 2020 to 21 Oct 2020).

Figure 7 (b). Graph of Observed, Fit, UCL, and LCL Values of COVID-19 (from 21 Oct 2020 to 16 March 2021).

Figure 7 (c). Graph of Observed, Fit, UCL, and LCL Values of COVID-19 (from 17 March 2021 to 10 July 2021).

Figure 7 (d). Graph of Observed, Fit, UCL, and LCL Values of COVID-19 (from 11 July 2021 to 30 Sep 2021).

4.1. Conclusion and Future Work

The ARIMA-based ML model is a suitable method for exploring and modeling the exponential dynamics of COVID-19. ARIMA models have shown excellent accuracy in predictive analysis. In conclusion, these ARIMA-based ML techniques are not only useful for understanding COVID-19 but can also be applied to future pandemics and the prediction of other infectious diseases.

The proposed methodology was applied to univariate stochastic data series but extending it to multivariate data series presents an exciting area for future research. The ARIMA-based machine learning approaches have demonstrated promising results and can be seen as valuable additions to the existing literature on stochastic data analysis and prediction.

Looking ahead, researchers could explore the application of various other predictive models, such as Bayesian networks, Artificial Neural Networks (ANNs), and Support Vector Machines (SVMs), for analyzing pandemic-related data and disease outbreaks.
